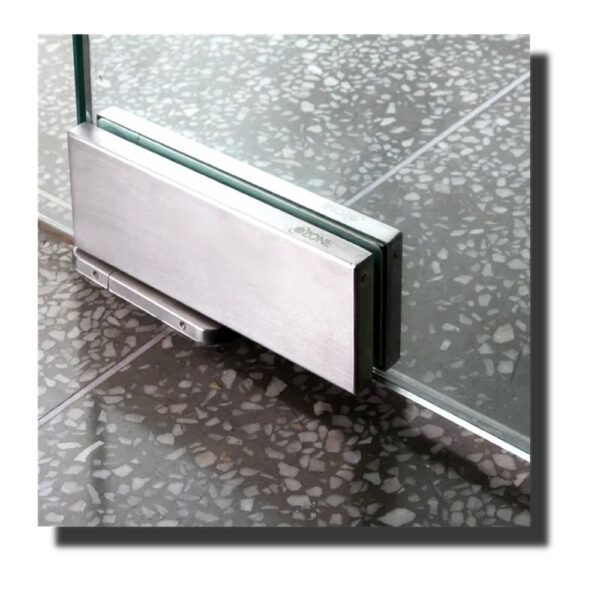

Hydraulic bottom patch.

• Requires no digging or cutting of door.
• Quick and easy installation with just 4 fasteners.
• Suitable door weight: Max 100kg
• Suitable door width: 750-1250mm (29 17/32″ – 49 7/32″)
• Suitable door thickness: 10-15mm (25/64″ – 19/32″)
• Maximum opening 150° and controlled 135° degree.
• Ambient temperature: -20°C to +50°C
• Hold open 90° (Non hold open also available)
• Easy installation with base seat adjustable.
• +3mm backward and forward, +3mm left and right and 4° alignment adjustment

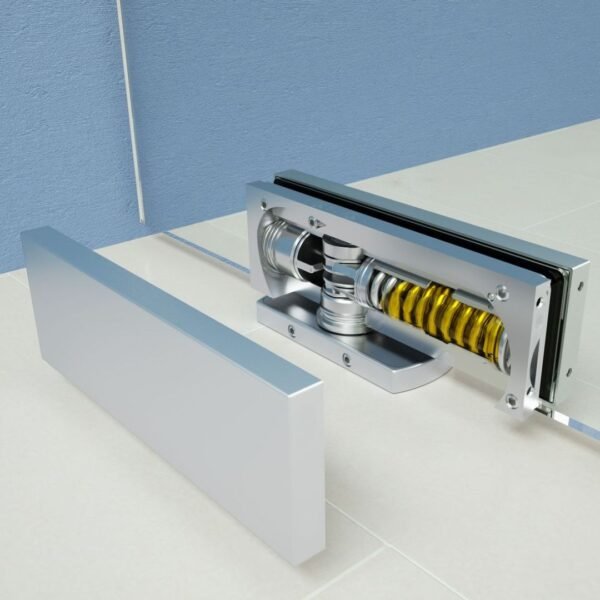

OCX Patch Fittings is the latest and one of the most innovative Bottom Patch fitting for frameless glass and wooden doors that comes with an in-built hydraulic system. The products under this range do not require any cavity to be made in the floor for installation. Hence. NO DIGGING, NO CUTTING of the floor is required, making the installation quick & easy. A hydraulic patch fitting for a glass door is a hardware component used to support and control the movement of glass doors in hydraulic or self closing systems. These fittings are designed to provide stability and enable smooth opening and closing of glass doors, especially in commercial applications like offices, shops or public buildings.
