PRODUCT DETAILS

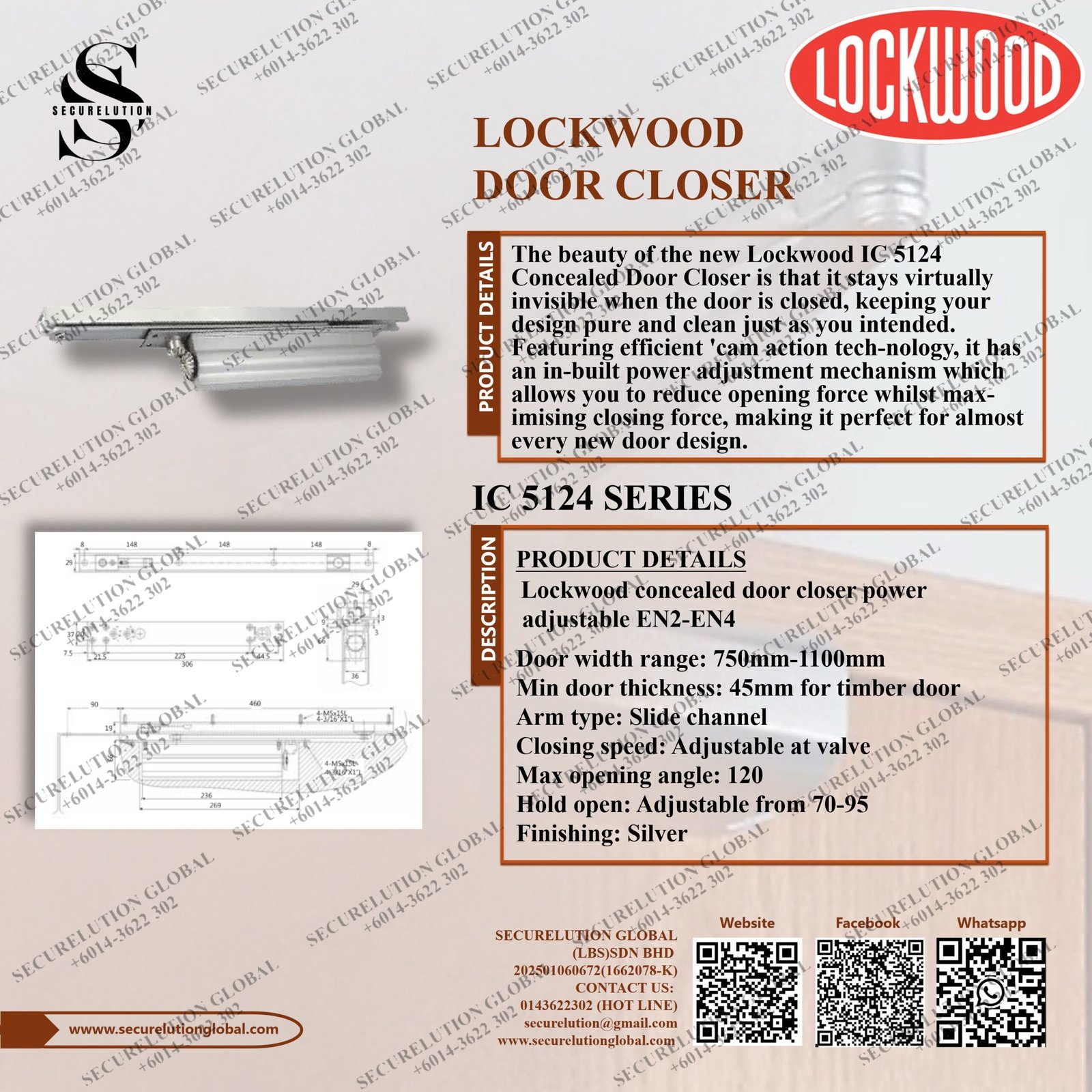

The beauty of the new Lockwood IC 5124 Concealed Door Closer is that it stays virtually invisible when the door is closed, keeping your design pure and clean just as you intended. Featuring efficient ‘cam action tech-nology, it has an in-built power adjustment mechanism which allows you to reduce opening force whilst max-imising closing force, making it perfect for almost every new door design.

DESCRIPTION

PRODUCT DETAILS: Lockwood concealed door closer power adjustable EN2-EN4

• Door width range: 750mm-1100mm
• Min door thickness: 45mm for timber door
• Arm type: Slide channel
• Closing speed: Adjustable at valve
• Max opening angle: 120
• Hold open: Adjustable from 70-95
• Finishing: Silver

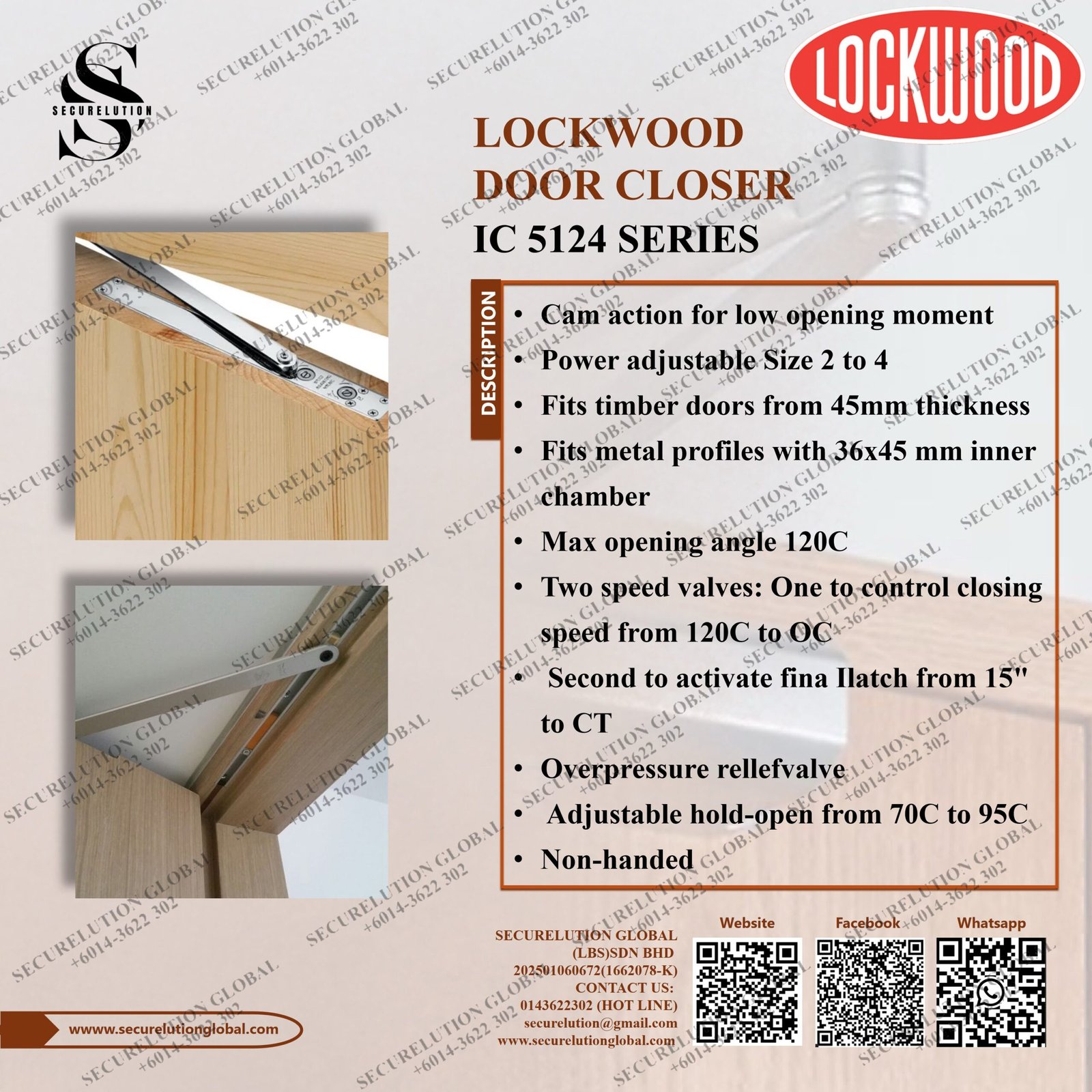

• Cam action for low opening moment
• Power adjustable Size 2 to 4
• Fits timber doors from 45mm thickness
• Fits metal profiles with 36×45 mm inner chamber
• Max opening angle 120C
• Two speed valves: One to control closing speed from 120C to OC
•  Second to activate fina Ilatch from 15″ to CT
• Overpressure rellefvalve
•  Adjustable hold-open from 70C to 95C
• Non-handed
