The primary purpose of this trim is to provide controlled access from the exterior. While a panic bar on the inside of the door is designed to allow an immediate, unhindered exit at all times—complying with fire safety codes—the exterior trim ensures the door remains locked to unauthorized personnel.

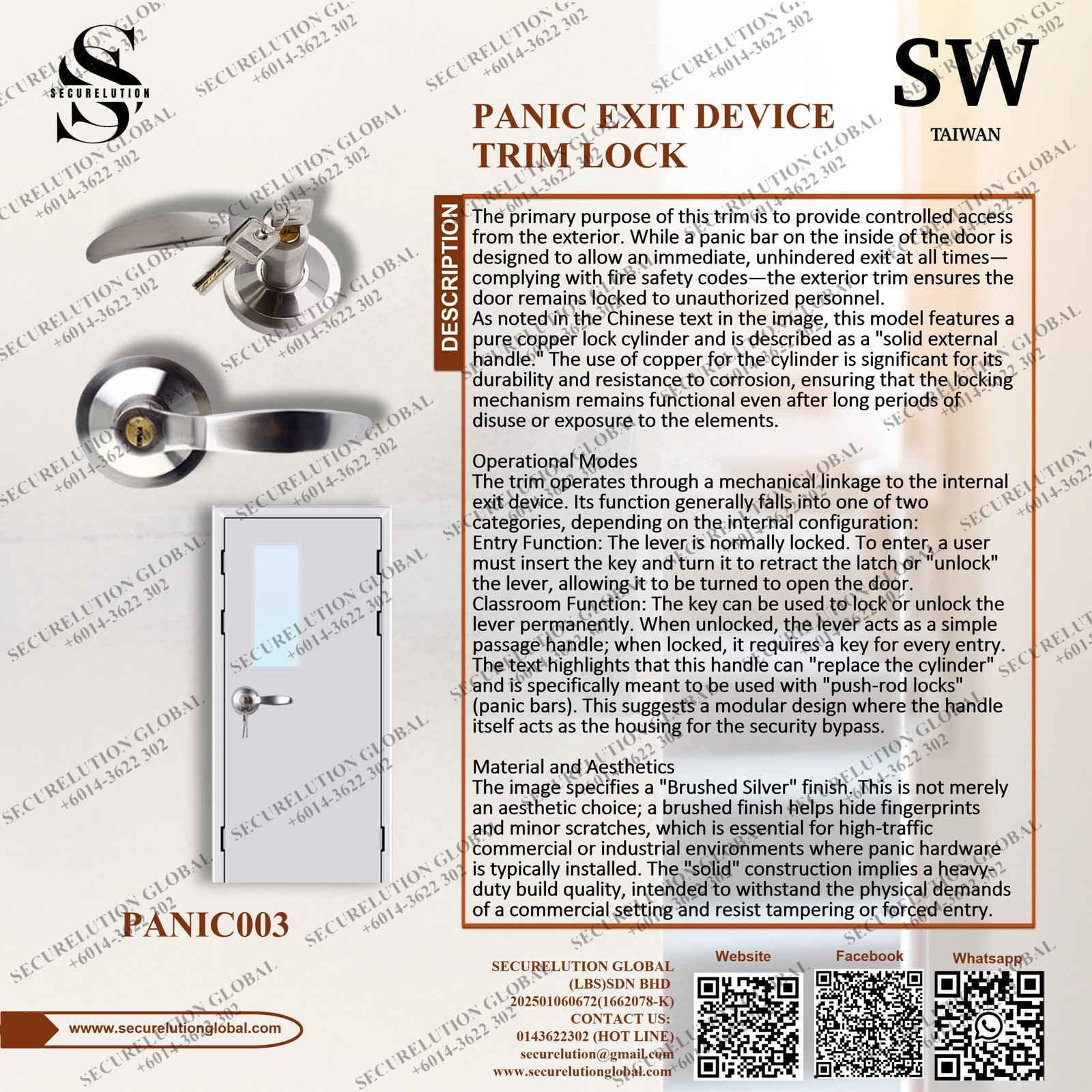

As noted in the Chinese text in the image, this model features a pure copper lock cylinder and is described as a “solid external handle.” The use of copper for the cylinder is significant for its durability and resistance to corrosion, ensuring that the locking mechanism remains functional even after long periods of disuse or exposure to the elements.

Operational Modes

The trim operates through a mechanical linkage to the internal exit device. Its function generally falls into one of two categories, depending on the internal configuration:

• Entry Function: The lever is normally locked. To enter, a user must insert the key and turn it to retract the latch or “unlock” the lever, allowing it to be turned to open the door.
• Classroom Function: The key can be used to lock or unlock the lever permanently. When unlocked, the lever acts as a simple passage handle; when locked, it requires a key for every entry.

The text highlights that this handle can “replace the cylinder” and is specifically meant to be used with “push-rod locks” (panic bars). This suggests a modular design where the handle itself acts as the housing for the security bypass.

Material and Aesthetics

The image specifies a “Brushed Silver” finish. This is not merely an aesthetic choice; a brushed finish helps hide fingerprints and minor scratches, which is essential for high-traffic commercial or industrial environments where panic hardware is typically installed. The “solid” construction implies a heavy-duty build quality, intended to withstand the physical demands of a commercial setting and resist tampering or forced entry.
