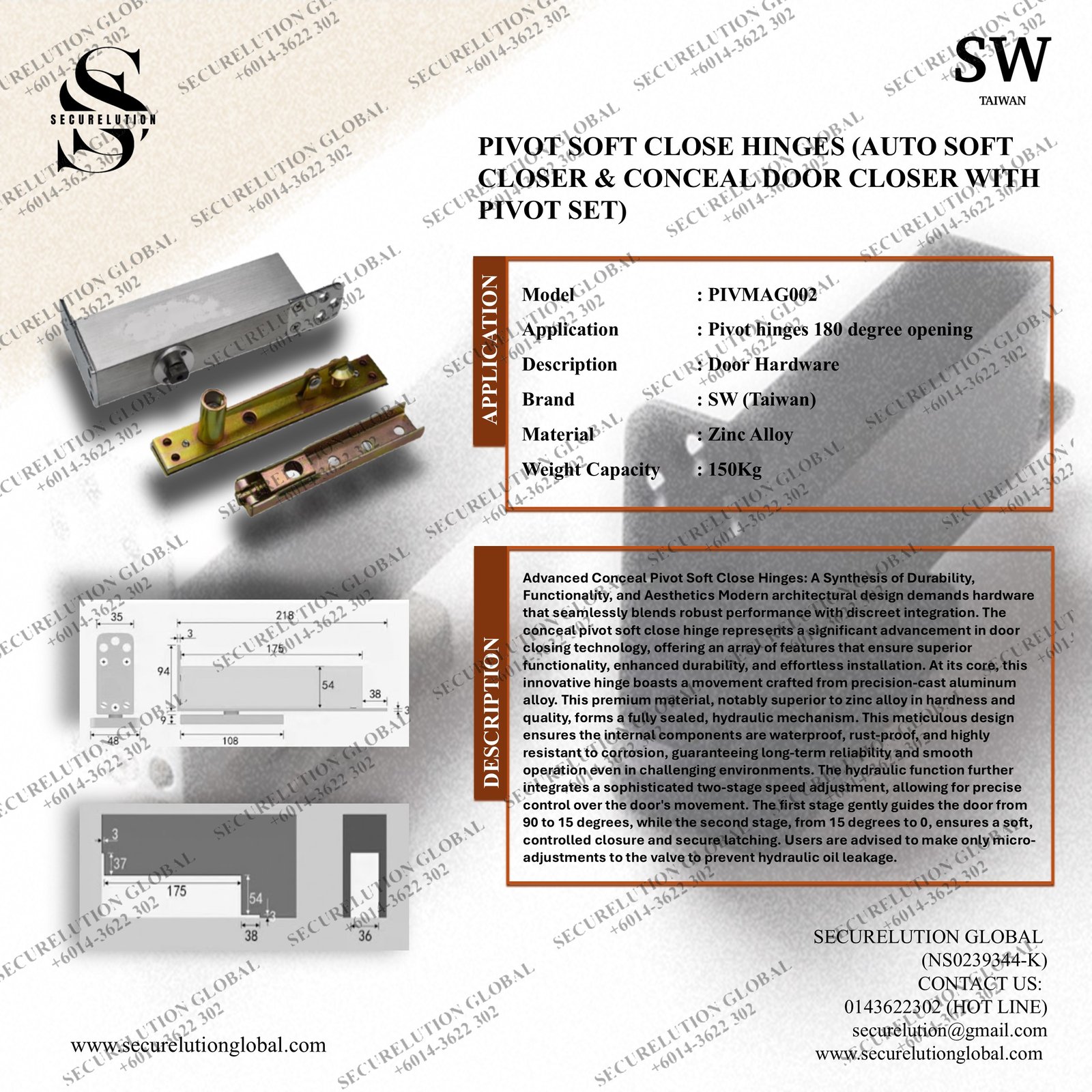

Model  : PIVMAG002

Application   : Pivot hinges 180 degree opening

Description  : Door Hardware

Brand  : SW (Taiwan)

Material  : Zinc Alloy

Weight Capacity   : 150Kg

Advanced Conceal Pivot Soft Close Hinges: A Synthesis of Durability, Functionality, and Aesthetics Modern architectural design demands hardware that seamlessly blends robust performance with discreet integration. The conceal pivot soft close hinge represents a significant advancement in door closing technology, offering an array of features that ensure superior functionality, enhanced durability, and effortless installation. At its core, this innovative hinge boasts a movement crafted from precision-cast aluminum alloy. This premium material, notably superior to zinc alloy in hardness and quality, forms a fully sealed, hydraulic mechanism. This meticulous design ensures the internal components are waterproof, rust-proof, and highly resistant to corrosion, guaranteeing long-term reliability and smooth operation even in challenging environments. The hydraulic function further integrates a sophisticated two-stage speed adjustment, allowing for precise control over the door’s movement. The first stage gently guides the door from 90 to 15 degrees, while the second stage, from 15 degrees to 0, ensures a soft, controlled closure and secure latching. Users are advised to make only micro-adjustments to the valve to prevent hydraulic oil leakage.
