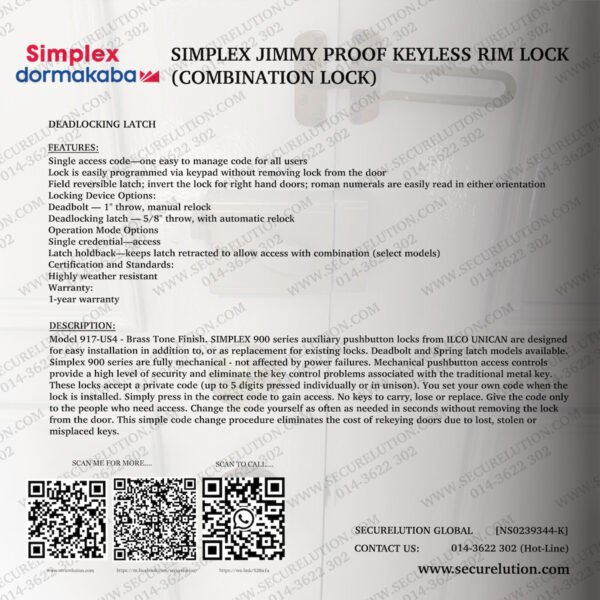

DEADLOCKING LATCH

FEATURES:

• Single access code-one easy to manage code for all users
• Lock is easily programmed via keypad without removing lock from the door
• Field reversible latch; invert the lock for right hand doors; roman numerals are easily read in either orientation Locking Device Options:
• Deadbolt — 1″ throw, manual relock
• Deadlocking latch — 5/8″ throw, with automatic relock Operation Mode Options
• Single credential-access
• Latch holdback—keeps latch retracted to allow access with combination (select models)
• Certification and Standards: Highly weather resistant
• Warranty: 1-year warranty

DESCRIPTION:

Model 917-US4 – Brass Tone Finish. SIMPLEX 900 series auxiliary pushbutton locks from ILCO UNICAN are designed for easy installation in addition to, or as replacement for existing locks. Deadbolt and Spring latch models available.

Simplex 900 series are fully mechanical – not affected by power failures. Mechanical pushbutton access controls provide a high level of security and eliminate the key control problems associated with the traditional metal key.

These locks accept a private code (up to 5 digits pressed individually or in unison). You set your own code when the lock is installed. Simply press in the correct code to gain access. No keys to carry, lose or replace. Give the code only to the people who need access. Change the code yourself as often as needed in seconds without removing the lock from the door. This simple code change procedure eliminates the cost of rekeying doors due to lost, stolen or misplaced keys.

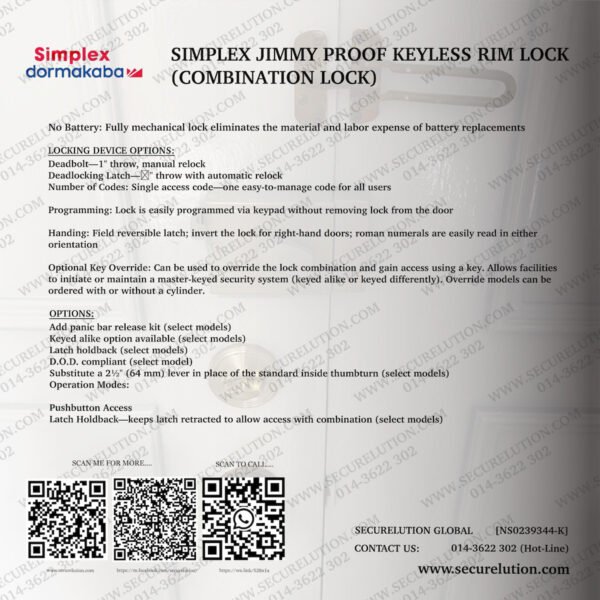

No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements

LOCKING DEVICE OPTIONS:

• Deadbolt—1″ throw, manual relock
• Deadlocking Latch—X” throw with automatic relock
• Number of Codes: Single access code—one easy-to-manage code for all users
• Programming: Lock is easily programmed via keypad without removing lock from the door
• Handing: Field reversible latch; invert the lock for right-hand doors; roman numerals are easily read in either orientation
• Optional Key Override: Can be used to override the lock combination and gain access using a key. Allows facilities to initiate or maintain a master-keyed security system (keyed alike or keyed differently). Override models can be ordered with or without a cylinder.

OPTIONS:

• Add panic bar release kit (select models)
• Keyed alike option available (select models)
• Latch holdback (select models)
• D.O.D. compliant (select model)
• Substitute a 2½” (64 mm) lever in place of the standard inside thumbturn (select models)
• Operation Modes:
• Pushbutton Access
• Latch Holdback-keeps latch retracted to allow access with combination (select models)
