TESA meets the msot demanding European standards for architectural fittings, in which cylinders are very important components in term of protection & personal safety. Specifically, the EN 1303 European standard establishes five degrees of security (fire resistance, security against breakage, number of combinations, durability & corrosion resistance) for cylinders, based on design requisites & on practise tests simulating and attacks.

Characteristic:

• Anti pick system
• Drill Protection Grade 1
• Restricted keyway
• Bump proof Cylinder lock
• Lifespan: 100,000 test cycles
• 3 keys per cylinder

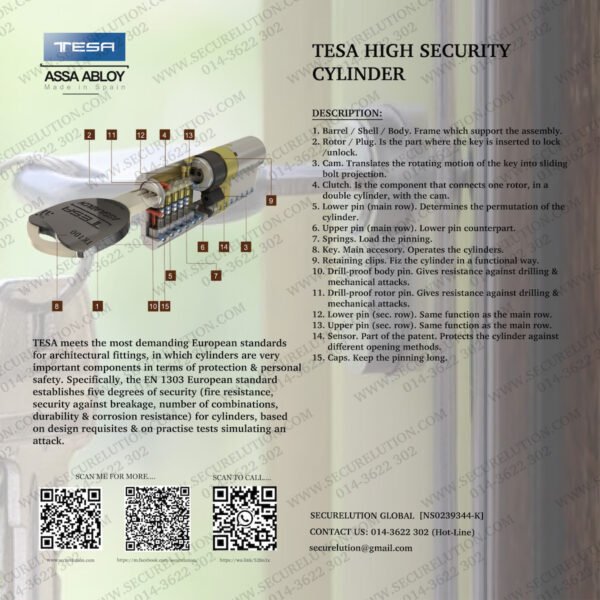

DESCRIPTION

1. Barrel/ Shell/ Body . Frame which support the assembly.
2. Rotor / Plug. Is the part where the key is inserted to lock/unlock
3. Cam. Translates the rotating motion of the key into sliding bolt projection.
4. Clutch. Is the component that connects one rotor , in a double cylinder, with the cam.
5. Lower pin (main row). Determines the permutation of the cylinder.
6. Upper pin (mai row). Lower pin counterpart.
7. Springs. Load the spring
8. Key. Main accessory. Operates the cylinders.
9. Retaining clips. Fix the cylinder in a functional way.
10. Drill-proof body pin. Gives resistance against drilling & mechanical attacks
11. Drill-proof rotor pin. Gives resistance against drilling & mechanical attacks
12. Lower pin (sec row). Same function as the main row.
13. Upper pin (sec row). Same function as the main row
14. Sensor. Part of the patent. Protects the cylinder against different opening methods.
15. Caps. Keep the pinning long.
